商品詳細

※ペダルは付属しておりません


SPEEDS:
2 × 10

WEIGHT:
9 kg (19.8 lb)

GEAR INCHES:
28" - 98" (3.07 - 7.81 m)

FRAME SIZES:
470(20"/451):160 to 170cm , 520(20"/451):170 to 180cm

MAX LOAD WEIGHT:
110 kg (242.5 lb)


FRAME

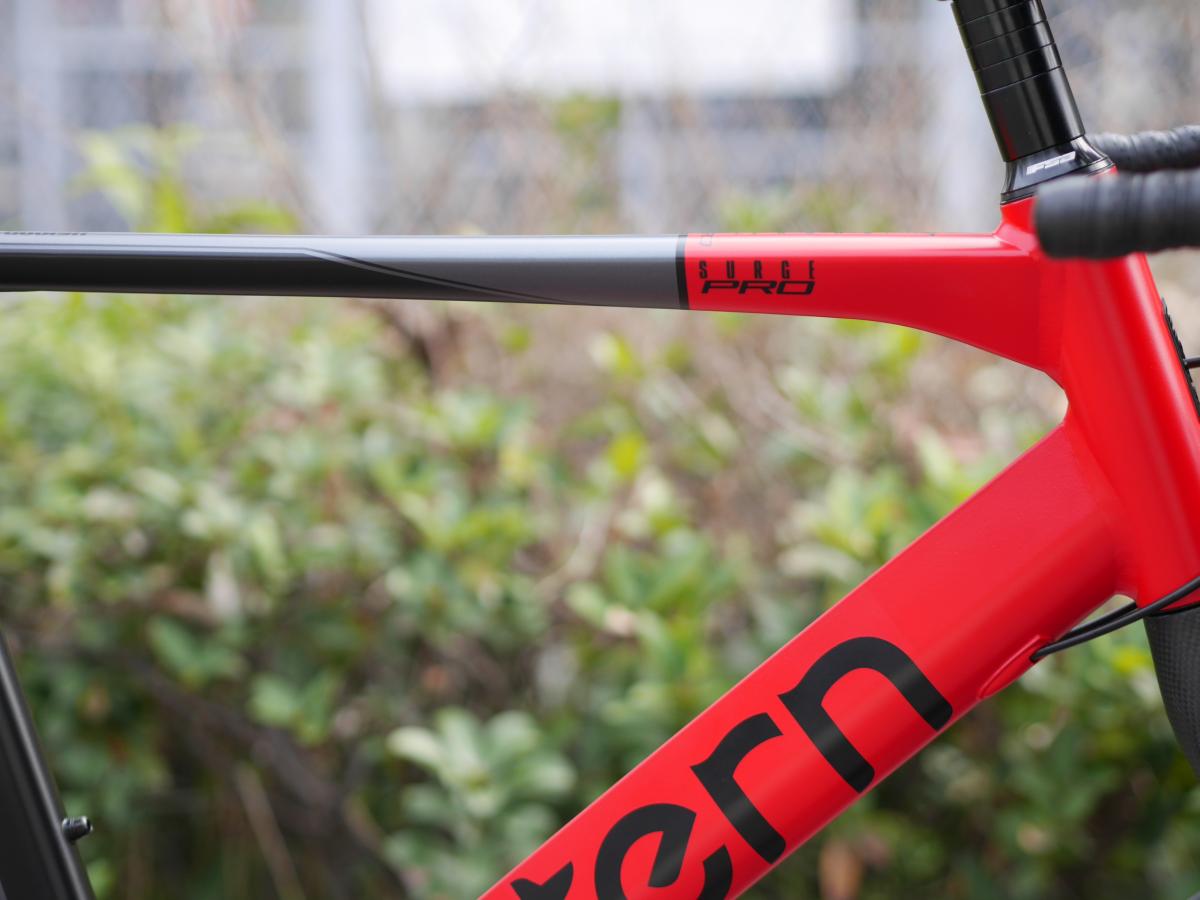

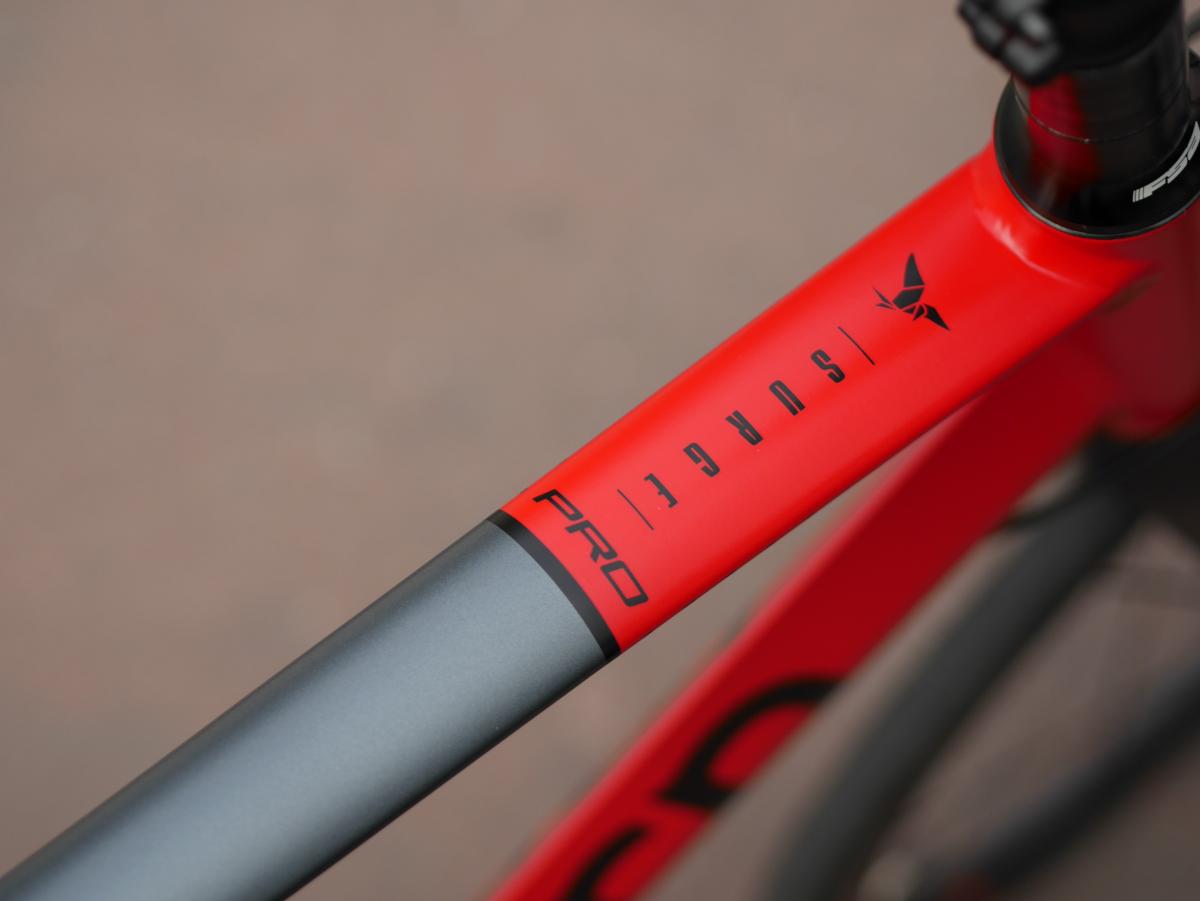

FRAME:
Aero smooth-welding

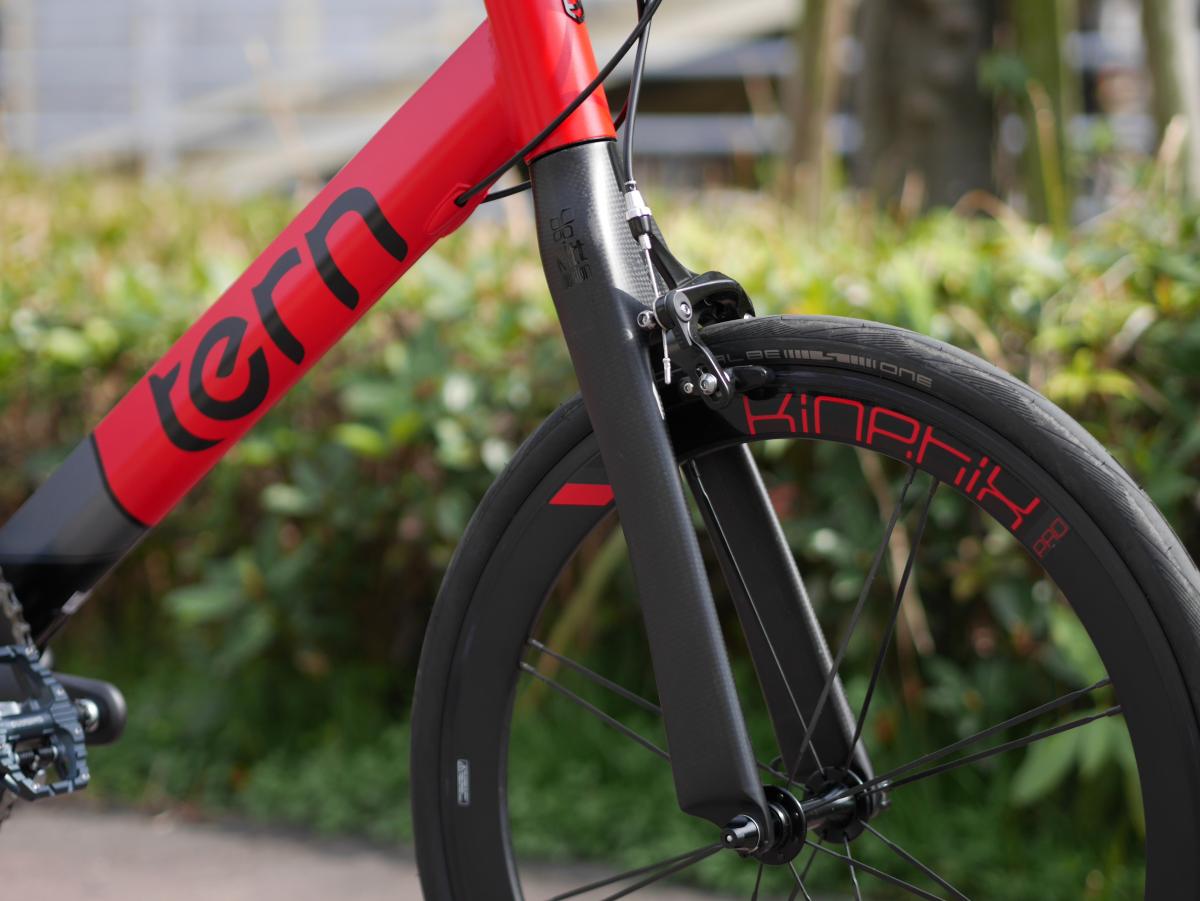

FORK:
Tern x Kitt design SMI 368 FULL Carbon, Aero-straight / 3K matt


COCKPIT

STEM:
3D Forged Alloy Threadless, ø31.8, 470:80mm / 520:90mm

HEADSET:
Threadless, semi-integrated

HANDLEBAR:
Kitt Custom Drop-bar Alloy, ø31.8, 470:380mm / 520:400mm

GRIPS/BAR TAPE:
Kitt Custom, Pinhole, Yellow/Black

SADDLE:
Kitt Custom, Pro Yellow / White

SEATPOST:
3D Forged Alloy, Onepiece, ø27.2 / 300mm


BRAKES

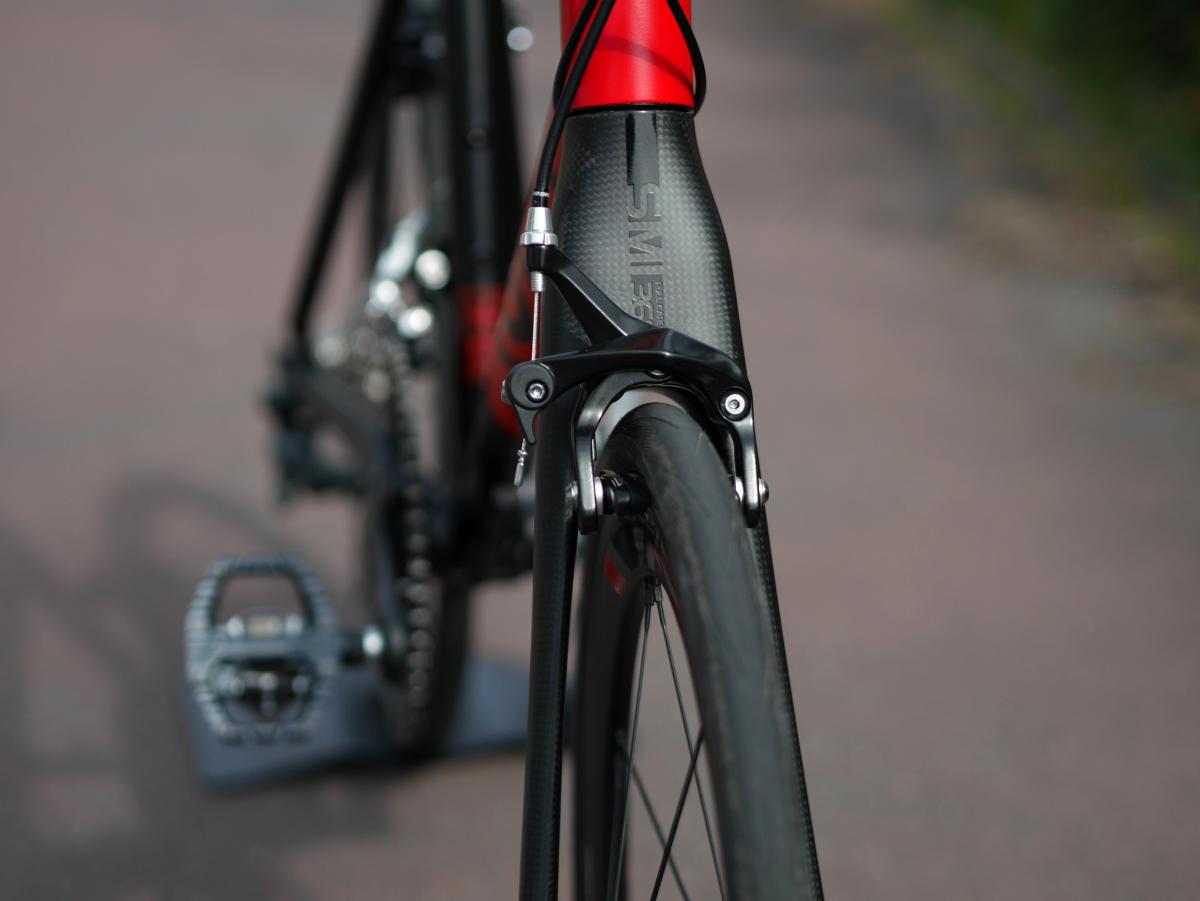

FRONT BRAKE:
Alloy forged caliper

REAR BRAKE:
Alloy forged caliper

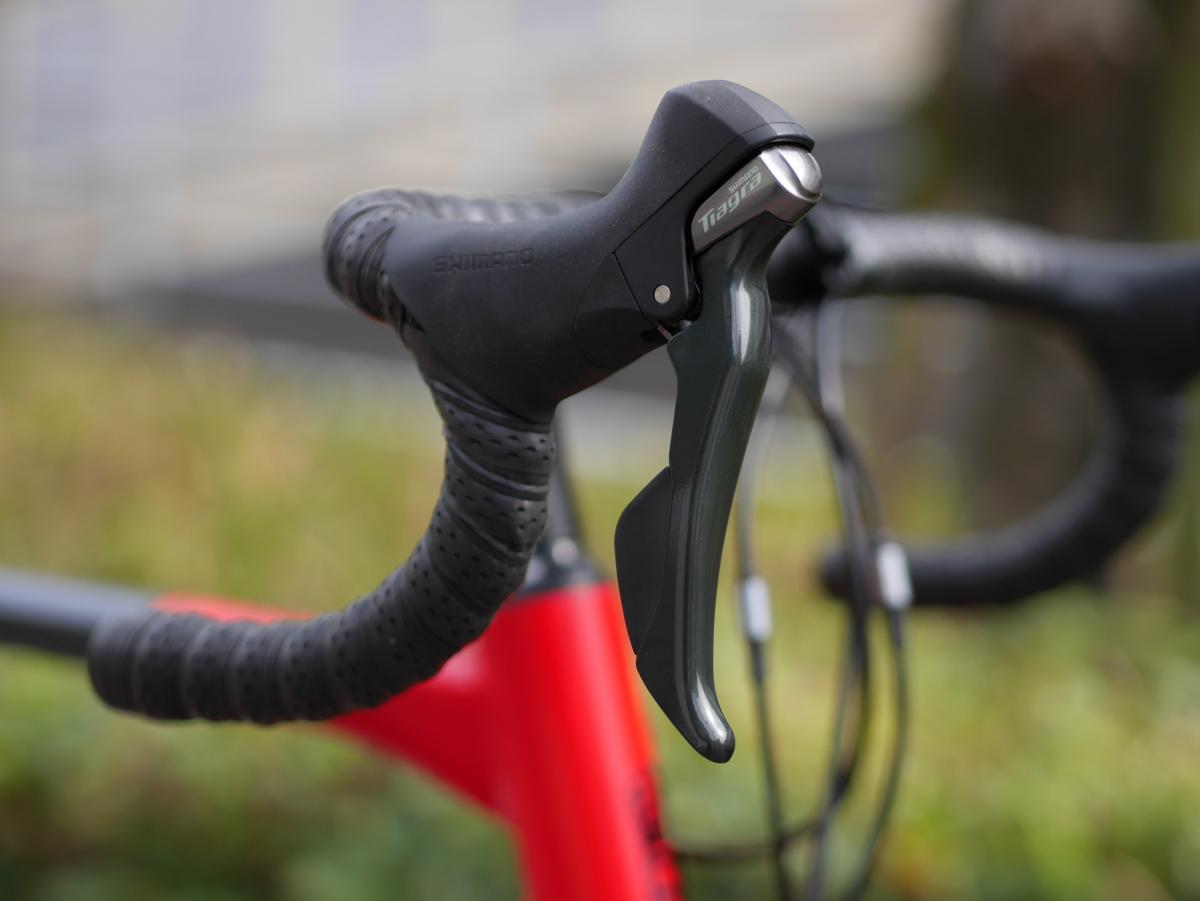

BRAKE LEVERS:
Shimano, ST-4700, Tiagra, STI


WHEELS

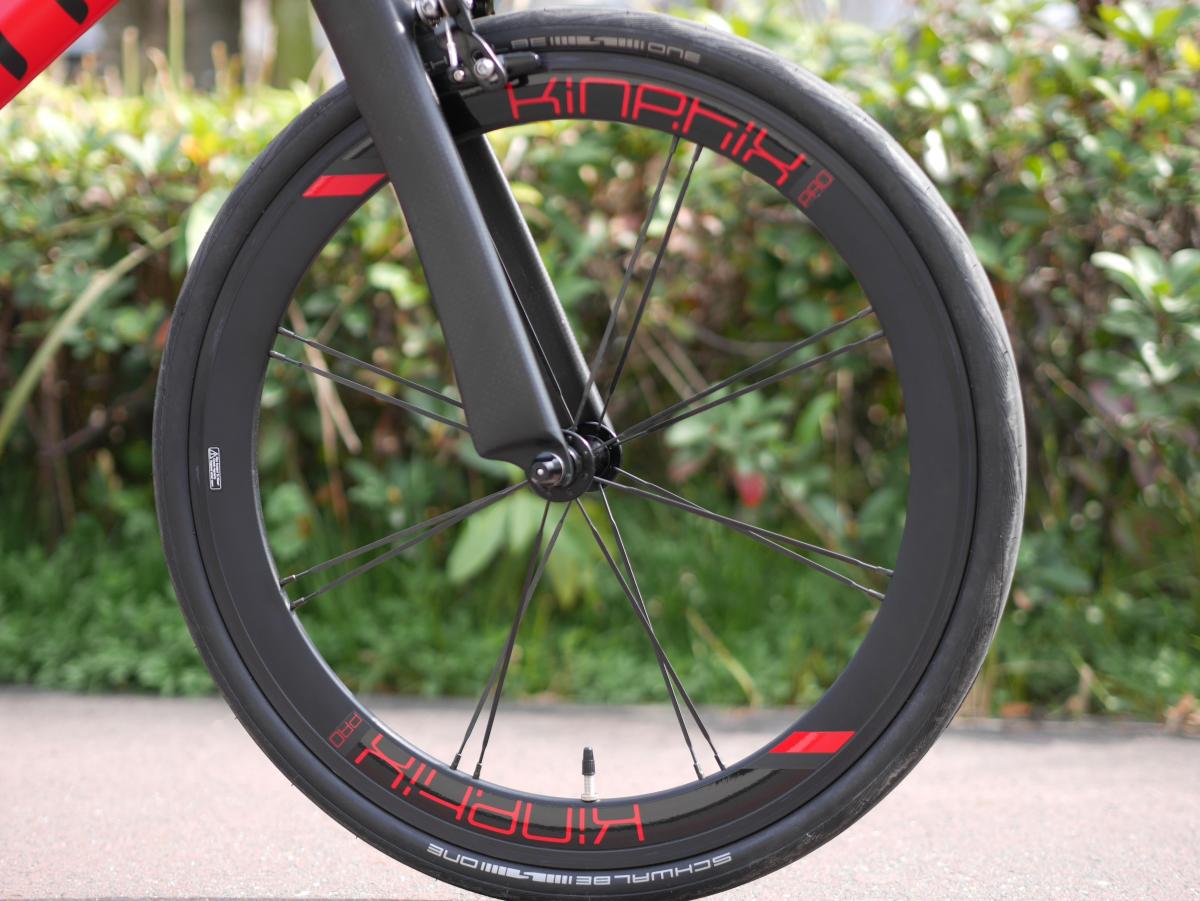

FRONT WHEEL:
Kinetix Pro Deep dish 451, 40mm Height, 16H, 100mm

REAR WHEEL:
Kinetix Pro Deep dish 451, 40mm Height, 16H, 130mm

TIRES:
Schwalbe One, 451, 20×1-1/8 F/V


TRANSMISSION

SHIFTER(S):
Shimano, SL-4700, Tiagra STI, 2×10 spd.

FRONT DERAILLEUR:
Shimano, FD-4700, Tiagra, 2 spd.

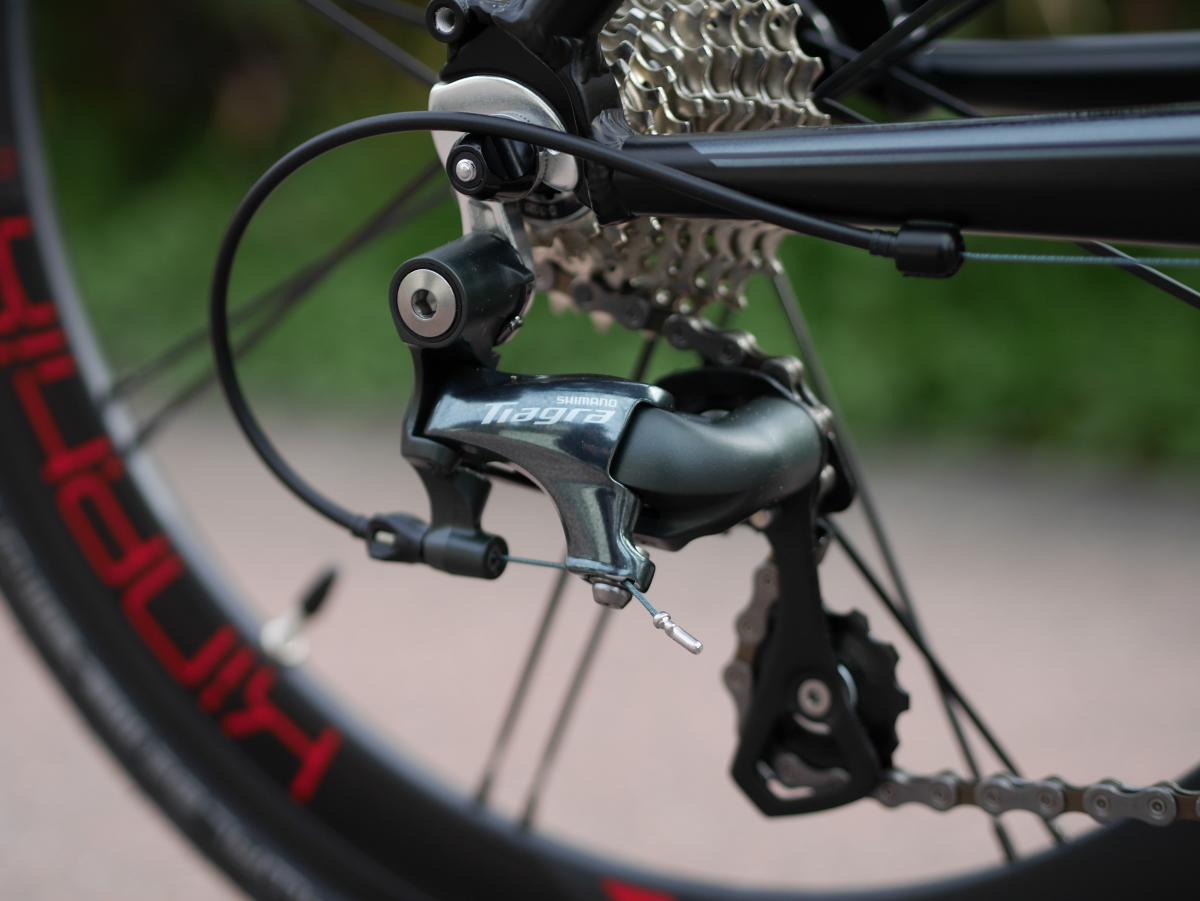

REAR DERAILLEUR:
Shimano, RD-4700, Tiagra, 10 spd.

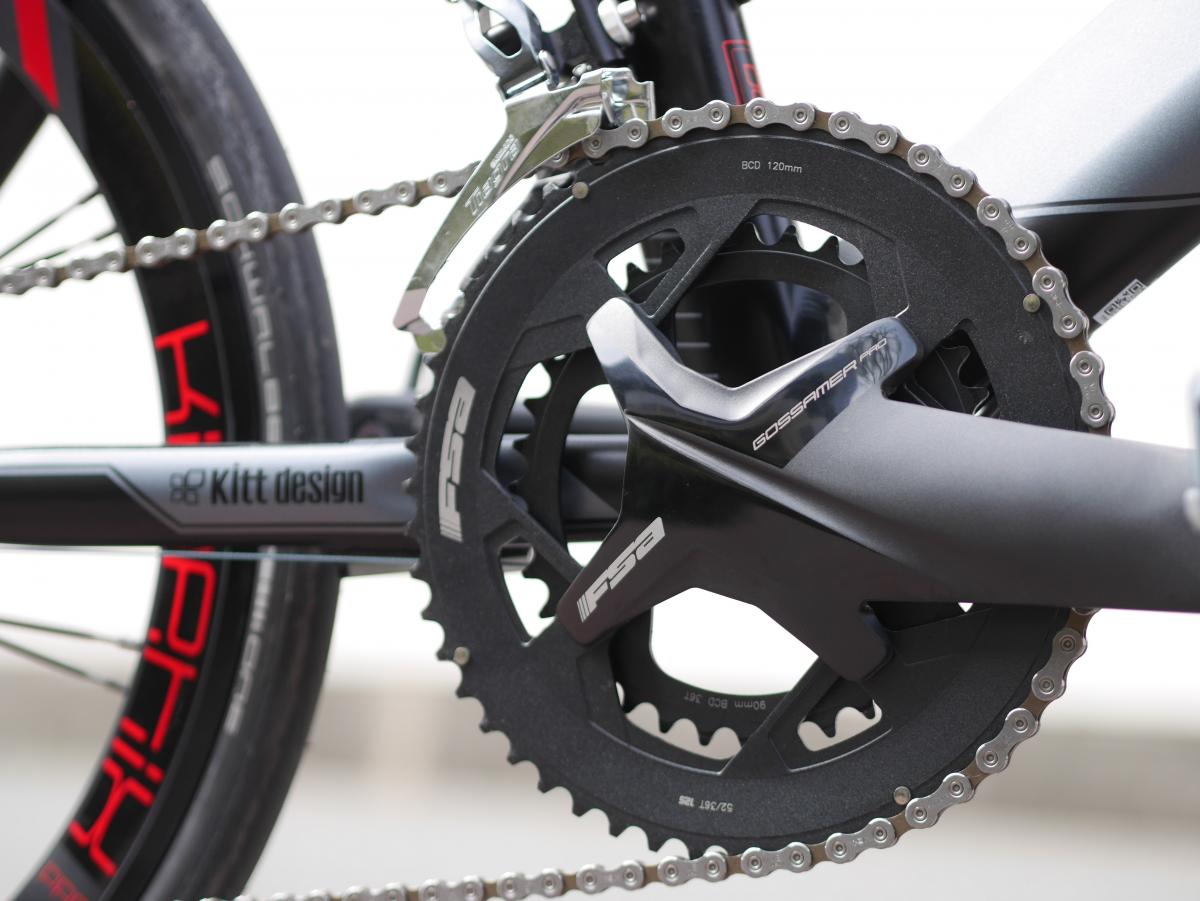

CRANKSET:
FSA Gossamer Pro, 52/36T

Bottom Bracket:
Shimano CS-HG500-10, 11-25T, 10spd.

PEDALS:
N/A

•
• ペダルは付属しておりません。
  必要に応じて別途ご注文ください。
