General Info

Speeds:
1 x 8

Weight:
21.5 kg (47.4 lb)

Gear Inches:
32" – 94" (2.58 – 7.50 m)

Folding Size:
79 × 38 × 72 cm (31.1 × 15 × 28.3 in)

Folding Time:
10 seconds

Frame Sizes:
One size

Distance: Seatpost to Handlebar:
61 - 61 cm (24 - 24 in)

Distance: Saddle to Pedal:
65 - 93 cm (25.6 - 36.6 in)

Suggested Rider Height:
160 - 190 cm (63 - 74.8 in)

Max Gross Vehicle Weight:
120 kg (264.6 lb)

Max Load Weight:
105 kg (231.5 lb)

Frame

Frame:
Tern Vektron, hydroformed aluminum, OCL+ joint, 3 patented technologies

Fork:
Integrated, hi-tensile steel

Cockpit

Handlepost:
Tern Physis 3D (G2), 3D forged, 5 patented technologies

Stem:
Fixed height, forged QR

Headset:
Tern Flux, cartridge bearings, Physis integrated

Handlebar:
Flat bar, 6061-AL, Tern Andros adapted

Grips/Bar Tape:
Velo ergonomic, lock-on

Saddle:
Tern Porter, patented GripPad design

Seatpost:
SuperOversize, 34.9mm, 6061-Al, micro-adjust clamp

Seatpost Clamp:
Oversize, 6061-AL

Brakes
Front Brake:
SHIMANO or TEKTRO, hydraulic disc

Rear Brake:
SHIMANO or TEKTRO, hydraulic disc

Brake Levers:
SHIMANO or TEKTRO, hydraulic disc

Brake Cable & Housing:
SHIMANO or TEKTRO, hydraulic disc

Wheels
Front Wheel:
Kinetix Comp, QR, doublewall, Centerlock disc mount, Shimano, 100 mm, 32H

Rear Wheel:
Kinetix Comp, QR, doublewall, Centerlock disc mount, Shimano, 135 mm, 32H

Front Hub:
Shimano disc

Rear Hub:
Shimano disc

Spokes & Nipples:
Stainless steel

Rims:
Kinetix Comp, for disc

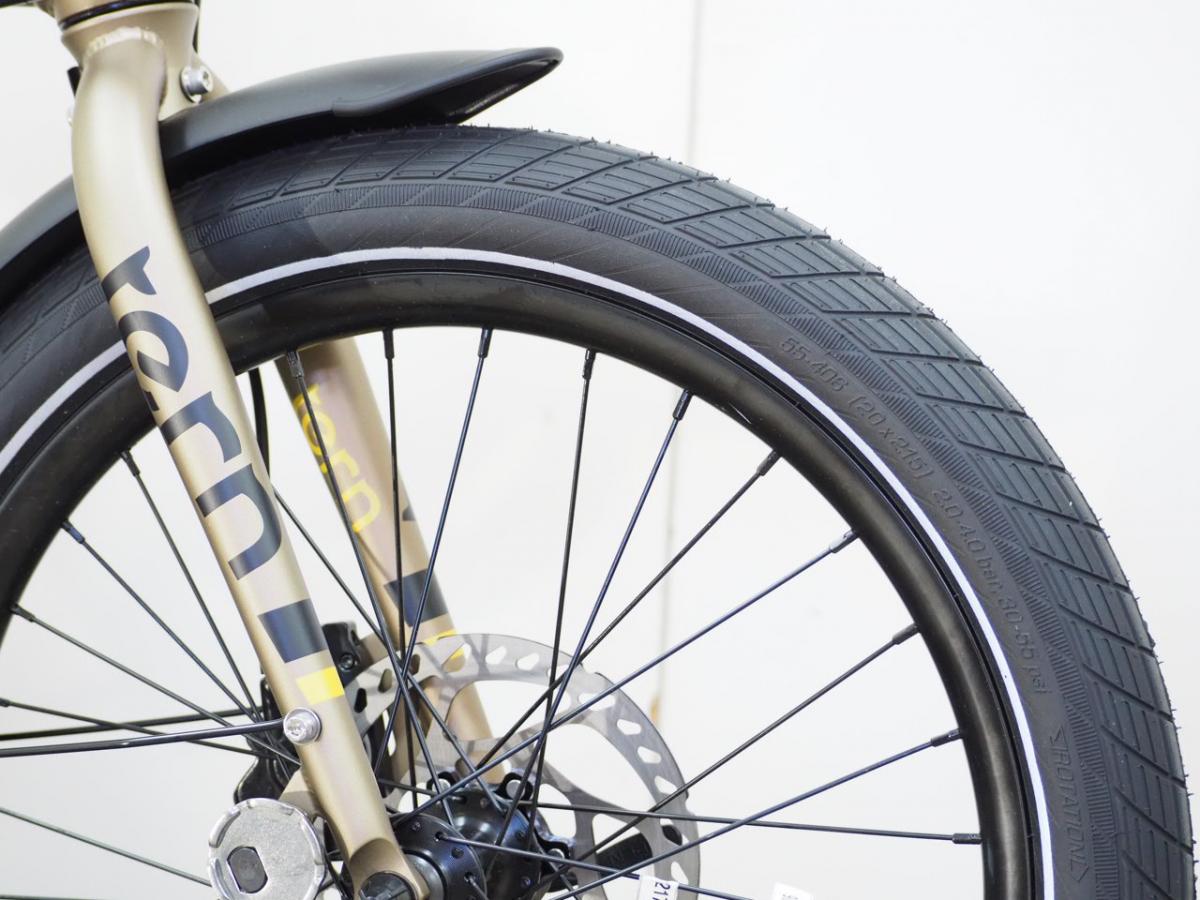

Tires:
Schwalbe Big Apple, 406, 20×2.15 F/V

Transmission

Shifter(s):
Shimano, 1×8 spd.

Front Derailleur:
n/a

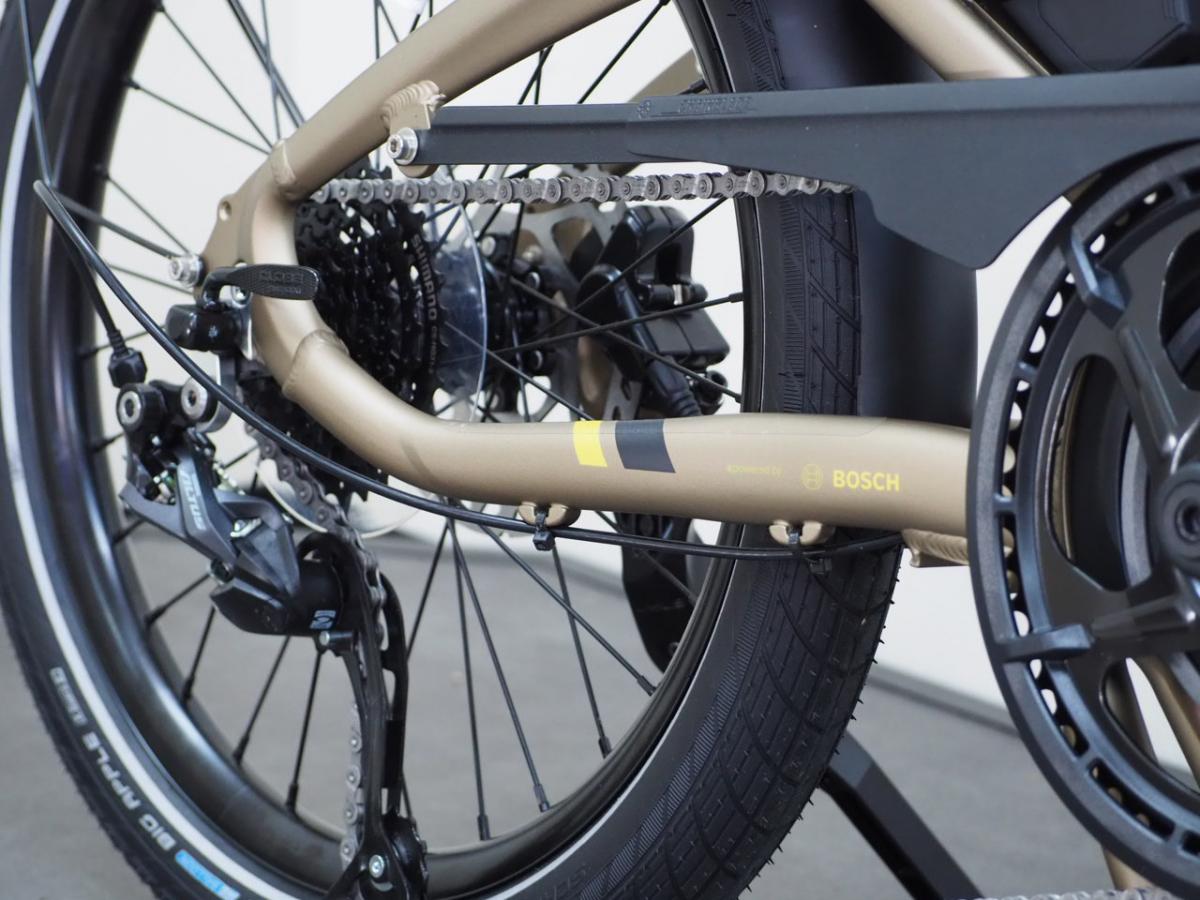

Rear Derailleur:
Shimano Altus Shadow, 8 spd.

Crankset:
Vektron custom, forged 6061-AL crankarm, 52T

Cassette/Freewheel:
Shimano 11-32T, 8 spd.
Bottom Bracket:
Motor integrated
Chain:
8 spd, DHT for eBike, GST corrosion resistant coating, 120L
Pedals:
Folding, anti-slip kraton insert
Shifter Cable & Housing:
Anti-compression housing, slick cables

E-System

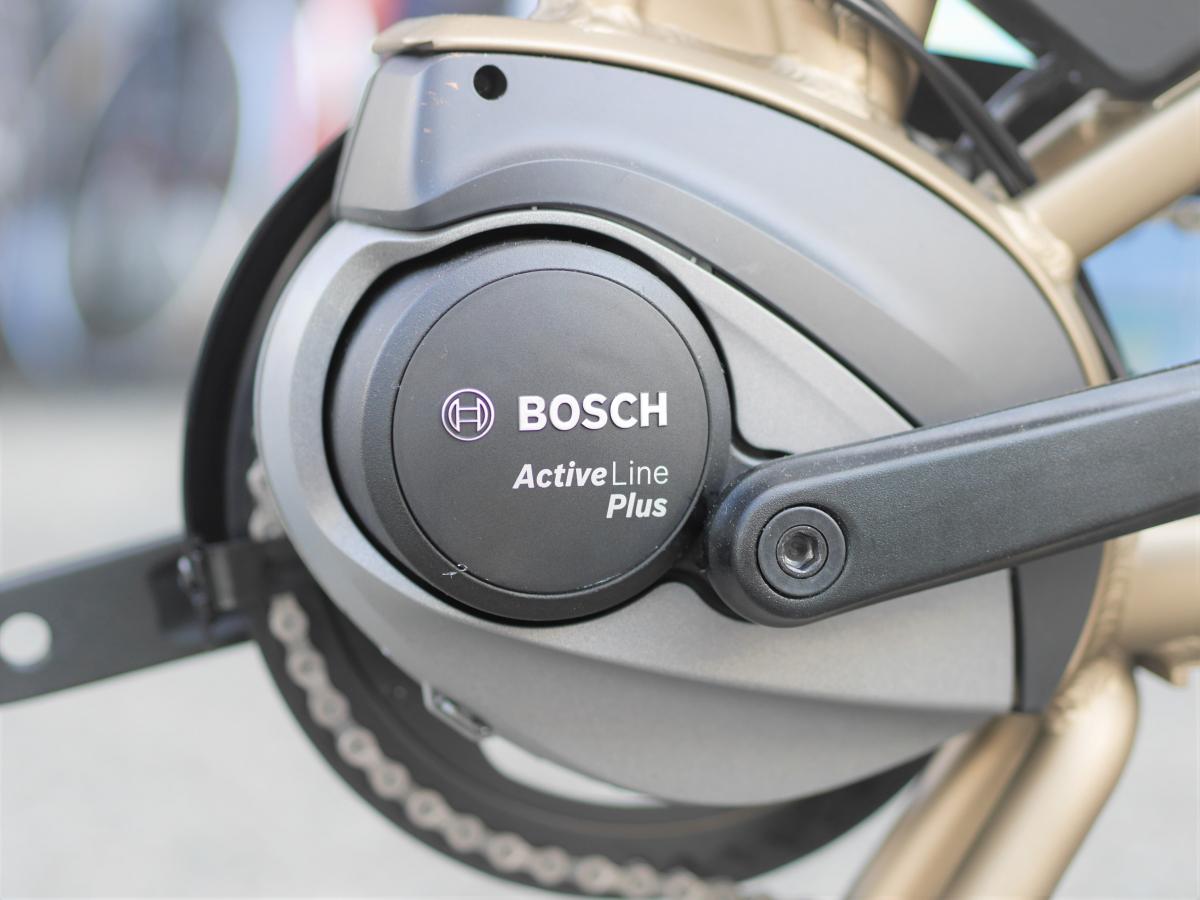

Motor:
Bosch Active Line Plus(24km/h)

Battery:
Bosch PowerPack 300Wh, 36V/8.2Ah

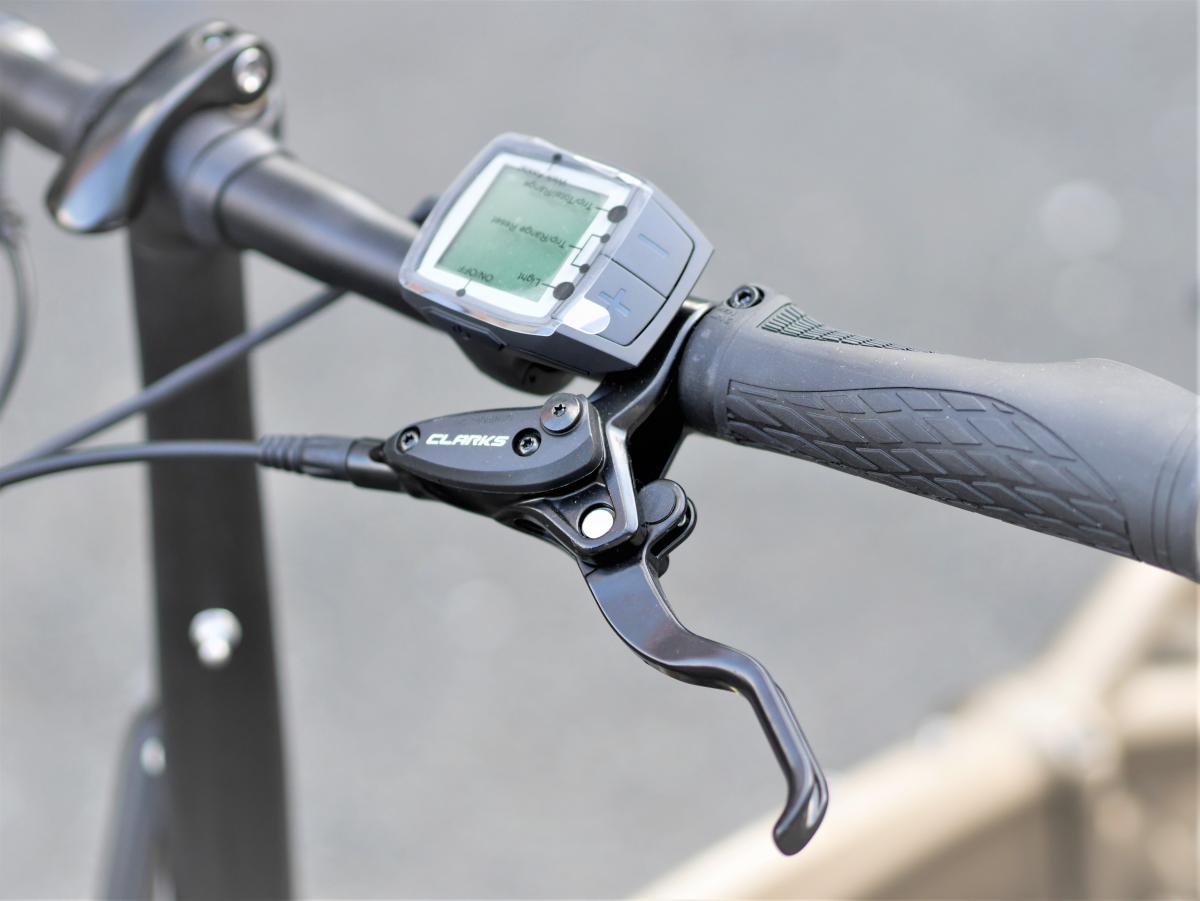

Display:
Bosch Purion

Range:
300 Wh: 54 - 105 km (参考値)

Charger:
Bosch Standard Charger, 100-240V, 800g, 190×86×54mm


Bells & Whistles

Bell:
Aluminum, Aluminum

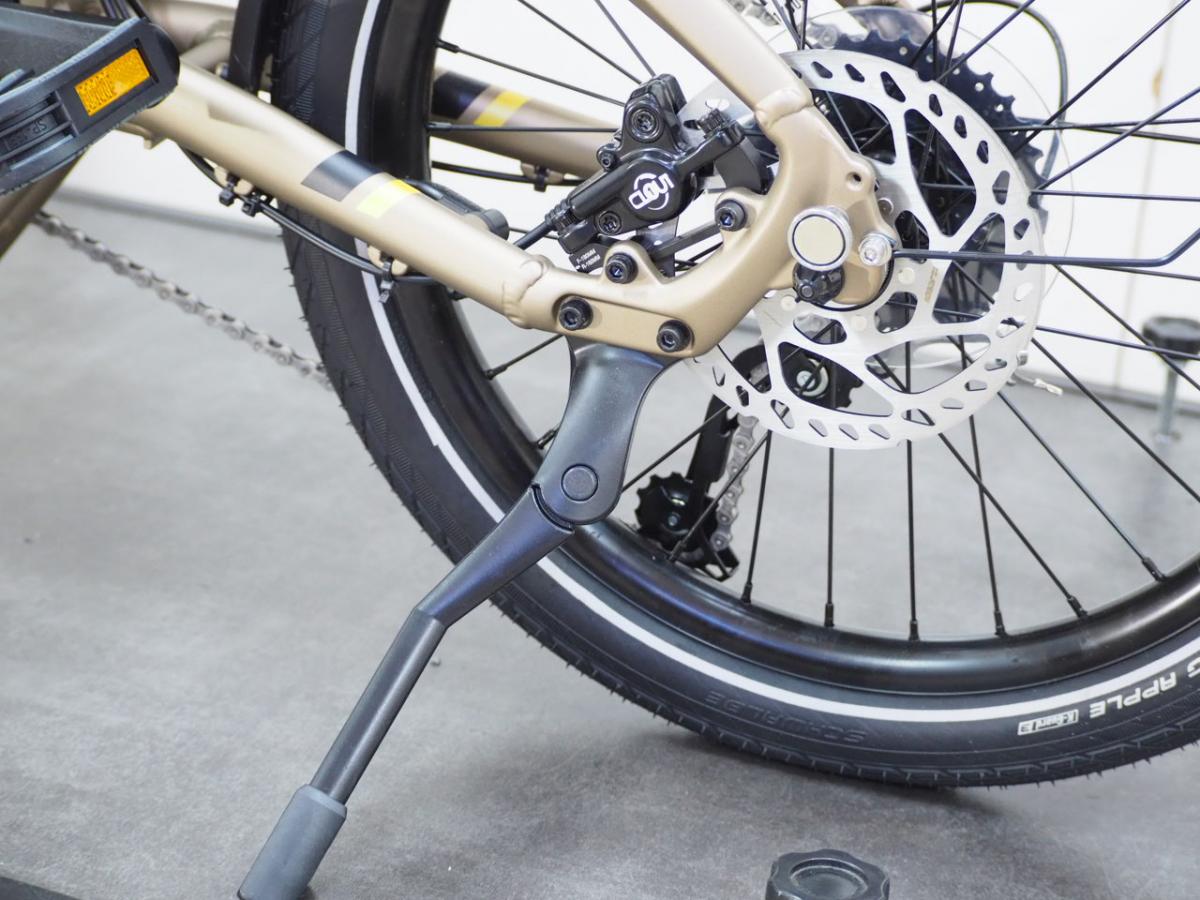

Kickstand:
URSUS, rear mount

Clip System:
Magnetix 3.0

Luggage Socket:
Yes

Fenders:
RP Chromeplastic, stainless hardware
